7 IMPLEMENTATION

We implemented Panopticus using Python and CUDA for GPU-based acceleration. All neural networks were developed using PyTorch [41] and trained on the training set in the nuScenes dataset [2]. Note that Panopticus is compatible with other 3D perception datasets such as Waymo [46], having sensor configurations similar to nuScenes. The neural networks for 3D object detection are developed based on

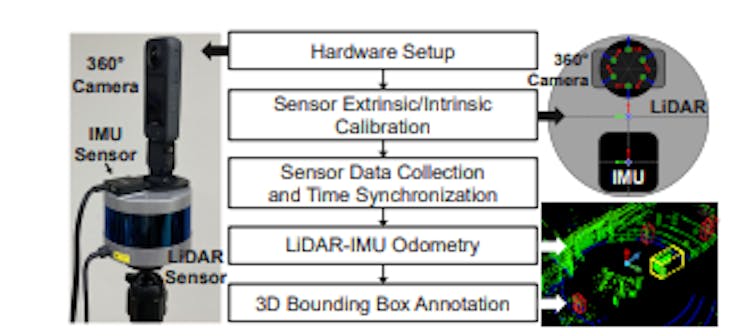

Figure 9: Setup for mobile testbed and dataset. MMDetection3D [35]. For the camera motion network, we customized and trained [53] to produce consistent relative poses between two consecutive frames for any given camera view. For the object tracker, we modified SimpleTrack [36] to use velocity for 3D Kalman’s state transition model. We used the GPU-accelerated XGBoost library [12] and linear model in scikit-learn [43] for performance predictors, and PuLP [17] for the ILP solver. In the model adaptation stage, memory usage is profiled via tegrastats

We optimized the performance of our multi-branch model in various ways. We used TensorRT [11] to modularize the neural networks and to accelerate the inference. Networks converted to TensorRT are optimized using floating-point 16 (FP16) quantization and layer fusion, etc. Camera view images assigned to the same networks, such as backbone network or DepthNet, are batch-processed together. Additionally, we used CUDA Multi-Stream [5] to process these multiple networks in parallel on an edge GPU. Meanwhile, we noticed an accuracy loss due to the simplistic modularization of our multi-branch model. Specifically, DepthNets and BEV head trained with a specific backbone network are incompatible with others. One-size-fits-all DepthNet is not practical since each backbone generates a 2D feature map of different sizes. Thus, our model includes DepthNet variants tailored to each backbone, ensuring accurate depth estimation. In contrast, the BEV head takes inputs of a consistent shape, regardless of the preceding networks—backbones and DepthNets. This allows us to train a universal BEV head compatible with any combination of preceding networks. We trained the BEV head from scratch, while the pre-trained backbones and DepthNets were fine-tuned.
